L.OS – Logistics Operating System

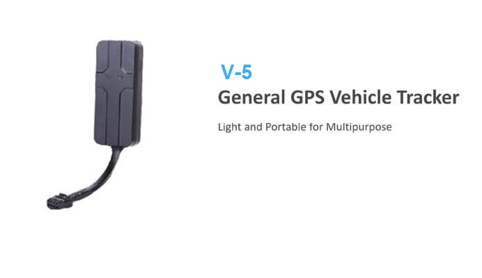

V5-2G Basic Tracker

V5 GPS tracker is a compact and efficient device designed for reliable location tracking in real time. Utilizing 2G connectivity, it offers essential tracking features suitable for personal vehicles and assets. With its user-friendly interface and simple installation, the V5 provides accurate positioning, geofencing capabilities, and historical route tracking. Ideal for those seeking an economical solution for monitoring their belongings, the V5 GPS tracker ensures you stay connected and informed at all times.
Request more Information

Sensors and Controls

    Motion Sensor
    Odometer
    Accelerometer

Location and Tracking

    Shows location via GPS, LBS & Beidou
    Real-time tracking by time/distance/cornering/ignition
    2 Status LEDs (GPS, GSM)

Events Monitoring

    ACC Detection - Ignition Status
    Driving Behaviour Analysis (Harsh acceleration / Braking / Over-speeding / Harsh cornering)
    Geofencing
    External power cut-off alert

Device Specs

Operating temperature     DC -20°C to 70°C
Battery     60Mah/3.7V Li-Polymer
Storage Temperature     –30°C to +85°C
Device Weight     29g
Device Dimension     71.9*30.2*12.9mm
Sensors     Accelerometer
Two type of ignition detection mode     Wire & motion

Apart from vehicle tracking capabilities, Concox V5 also provides SOS emergency alerts, remote power/fuel cut-off, geofencing, and historical data recording.



HIGHLIGHTS

Standard     2G
Band     850/900/1800/1900 MHz
Max output     GSM850/GSM900:33±3dBm
Max frequency error     ±0.1ppm
GPRS     Class 12, TCP/IP
Postion System     GPS
Frequency     L1,1575.42MHz C/A code
GPS channel     66
Positioning accuracy     <2.5m CEP
Tracking sensitivity     -165dBm
Acquisition     -148dBm
TTFF (open-sky)     Avg. hot start <1sec | Avg. cold start <35sec
GNSS     GPS
Data storage     32MB+32MB
SIM Card Type     Nano
LED Indication     Green (Cellular), Blue (GPS)
Power Supply     Power cable: B+/ACC/GND
Operating Voltage     DC 9–90V
